Section sizes
The standard brush strips range is available in 6 different section sizes with over 40 different trim lengths. The section size refers to the profile thickness of the camstrip:

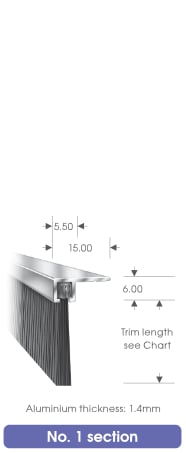

- No.1 Section – 2.5 mm – XSmall

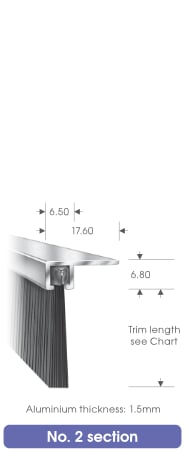

- No.2 Section – 4 mm – Small

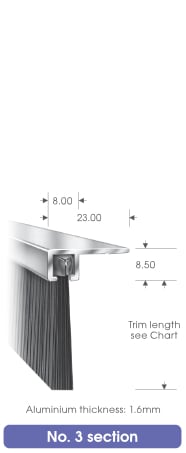

- No.3 Section – 5 mm – Medium

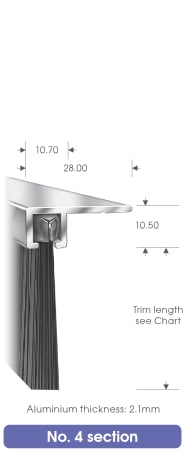

- No.4 Section – 6 mm – Large

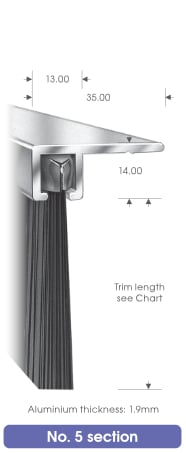

- No.5 Section – 8 mm – Xlarge

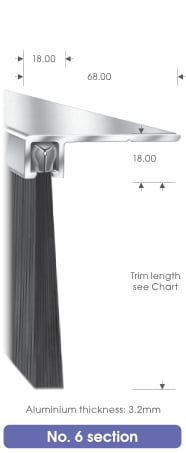

- No.6 Section – 11.5 mm – XXLarge
Materials
Filaments: extruded from type 6 nylon
- Hard wearing
- Good memory
- Working temperature range -40 °C to +100 °C
- Metal backing: Electro-galvanised steel.
- Core wire: Electro-galvanised steel.
- Fixing carrier: Mill finish extruded aluminium in 180°, 90° and 45° flanges.
Additional information
Non-standard seals are available to individual customer specification. These can include:
- Stainless steel backing tape.
- Metallic or natural fibre filaments.
- Coils or rings etc; made from standard or non-standard Brush Strip.
- Anodised or painted finishes available on request
If you are looking for a customised brush, please contact us with your requirements and we will do our best to help!
Delivery and collection
Our products shown online are available from stock, with Ex Works Next Working Day delivery for Mainland UK.
- Mainland UK shipping is £19.95 as standard (up to 20kg).
- Free shipping to Mainland UK on all orders over £400.00 in goods value.
It is also possible to collect products from Formseal (ST15 0YJ) or arrange for shipping outside the UK. If you are located overseas, please contact us for a customized quotation based on your specific needs, location, and the weight/dimensions of the goods. This will allow us to provide you with the most competitive offer.
