Section sizes
The standard brush strips range is available in 6 different section sizes with over 40 different trim lengths. The section size refers to the profile thickness of the camstrip:

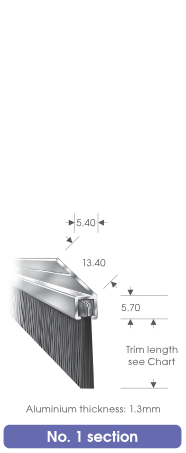

- No.1 Section – 2.5 mm – XSmall

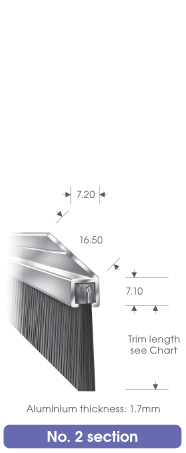

- No.2 Section – 4 mm – Small

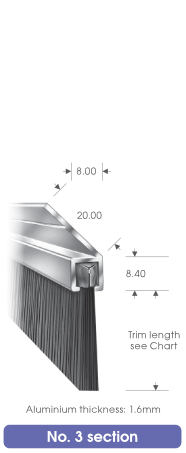

- No.3 Section – 5 mm – Medium

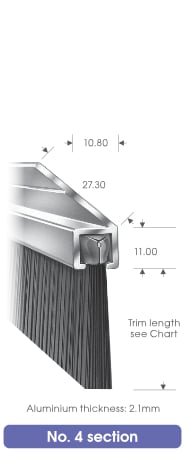

- No.4 Section – 6 mm – Large

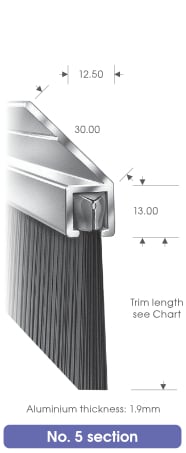

- No.5 Section – 8 mm – Xlarge

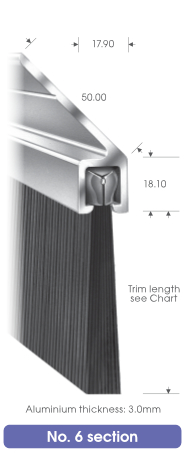

- No.6 Section – 11.5 mm – XXLarge
Materials
Filaments: extruded from type 6 nylon
- Hard wearing
- Good memory
- Working temperature range -40 °C to +100 °C
- Metal backing: Electro galvanised steel.
- Core wire: Electro galvanised steel.
- Fixing carrier: Mill finish extruded aluminium in 180°, 90° and 45° flanges.
Additional information
Non-standard seals are available to individual customer specification. These can include:
- Stainless steel backing tape.
- Metallic or natural fibre filaments.
- Coils or rings etc; made from standard or non-standard brush strip.
- Anodised or painted finishes available on request.
Delivery and collection
Available from stock, Ex Works for Next Working Day delivery (Mainland UK). We can ship ‘Worldwide’, so please contact us for a customised quotation based on your needs, location and weight/dimensions.
- Mainland UK Shipping is £19.95 as standard (up to 20KG).
- Free shipping to Mainland UK on all orders over £400.00 goods value.
