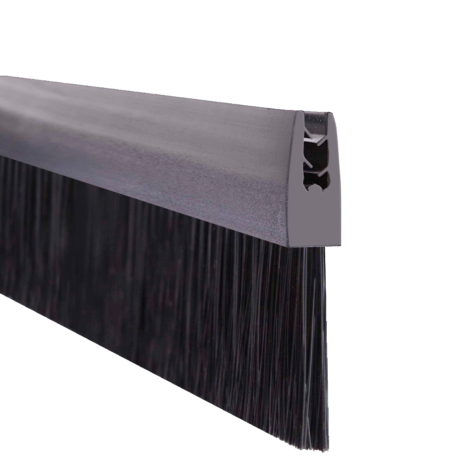

The flexible brush strip – clip-on profile 180° is a highly popular choice for various sealing needs. Featuring a flexible thermoplastic core and polypropylene filament, this adaptable brush strip excels in sealing, guiding, wiping, and pressing applications.
Dimensions
The flexible brush strip comes in convenient 25-metre rolls, allowing for easy customization to your desired length. The clip-on profile 180° is available in three different sizes. Available brush heights include 20mm, 30mm, 40mm, and 50mm.
- Profile 8 x 18 mm – suitable for panels with a thickness between 0.6 – 1.5 mm
- Profile 9 x 18 mm – suitable for panels with a thickness between 1 – 2 mm
- Profile 10.2 x 22.9mm – suitable for panels with a thickness between 1.6 – 3 mm
Materials
The profile is made from thermoplastic rubber, while the filament is constructed from 0.2mm black synthetic polypropylene. This brush strip is both UV and ozone resistant and can withstand temperatures ranging from -40°C to +125°C.
Additional information
Delivered as standard in rolls of 25 metres. If you don’t need this full length, you have the option to purchase by the metre, with a surcharge applied. Please contact us for the per metre price, as this is a special order and not currently available online.
Delivery and collection
Our products shown online are available from stock, with Ex Works Next Working Day delivery for Mainland UK.
- Mainland UK shipping is £19.95 as standard (up to 20kg).
- Free shipping to Mainland UK on all orders over £400.00 in goods value.
It is also possible to collect products from Formseal (ST15 0YJ) or arrange for shipping outside the UK. If you are located overseas, please contact us for a customized quotation based on your specific needs, location, and the weight/dimensions of the goods. This will allow us to provide you with the most competitive offer.
Part number
- FSC3620-50 (589)
- FSC20-50 (591)
- FSC3920-50 (593)
